Mitosis

Mitosis is a 3D printer than can self-replicate and print everything you need to build another 3D printer besides the electronics! I am the electrical project lead where I am in charge of configuring the custom Marlin firmware that our printer runs on, as well as wiring up the entire printer and all of its accessories.

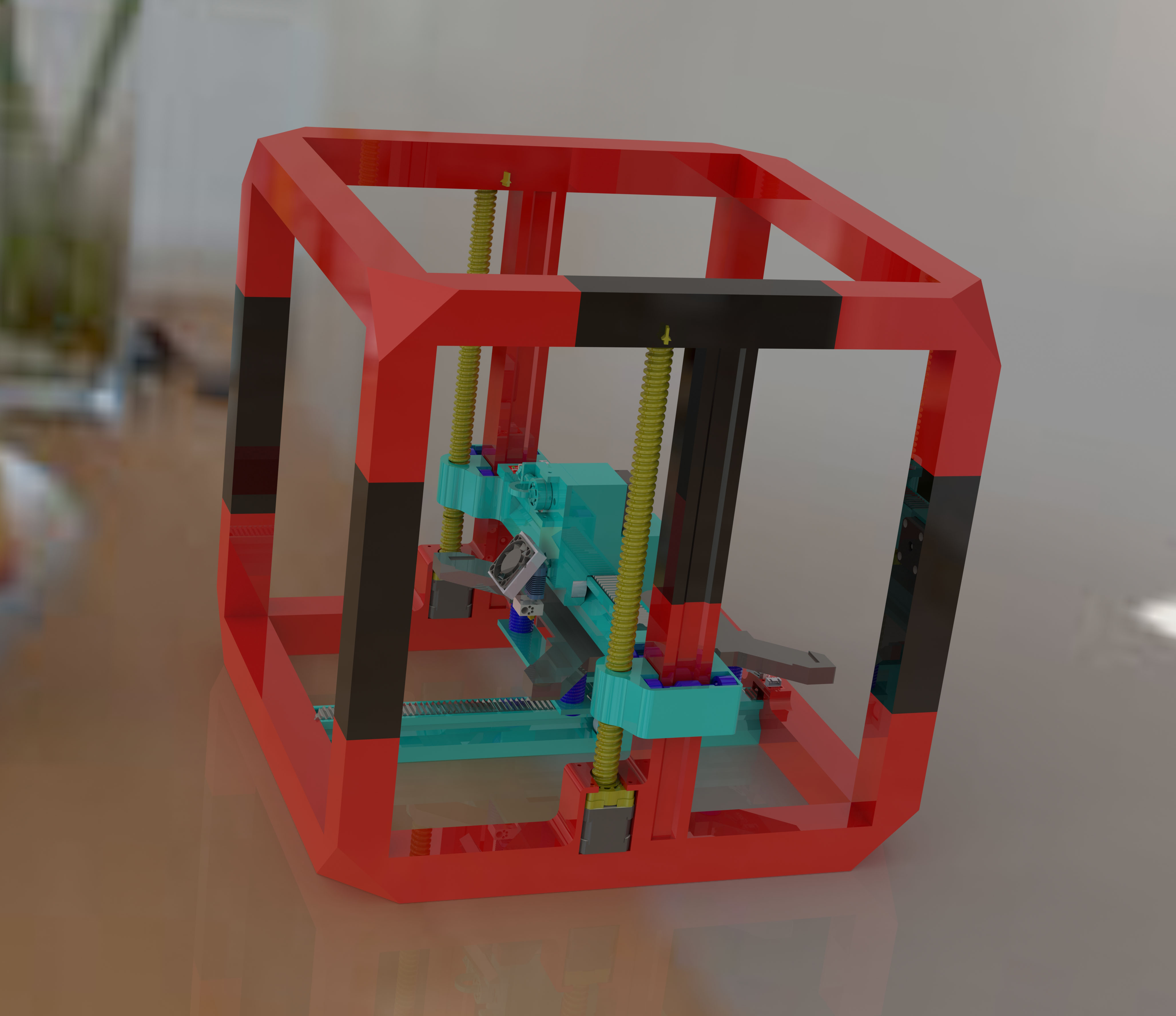

Mitosis Printer

Marlin is open-source firmware built for 3D printers. There are many pre-configured binaries of Marlin that you can download online for specific printers, but since ours is custom, we had to define our own Marlin configuration. We first began by creating a base configuration that could control the 5 different stepper motors the printer used. One motor for the X direction, one for the Y direction, two for the Z direction, and one for the extruder. The video below shows us controlling the motors for the first time using Pronterface, which is another open-source software that lets you connect to and control your printer from a computer.

Link Coming

We then hooked up the X and Z motors to get a first glimpse at how the printhead moves around. The video below shows how shaky the printhead was, but we have fixed that in version 2!

Link Coming

We then configured Marlin to enable the extruder heating up and did a first test of the extruder, which you can see below.

Link Coming

Along with the main printer, we are also working on a ‘Filastruder” which is a machine that will take in plastic beads, and dispense filament that the printer can use. This is super cost efficient because you can buy 10kg of pellets for only $100, and if you bought 10kg of spooled filament, it would cost you upwards of $200!

We are currently working on Version 2 of the printer, where we are designing a custom control board along with major upgrades to the frame of the printer to make it more stable.
